FOUNTAINE WATER · BERKEY® SYSTEMS

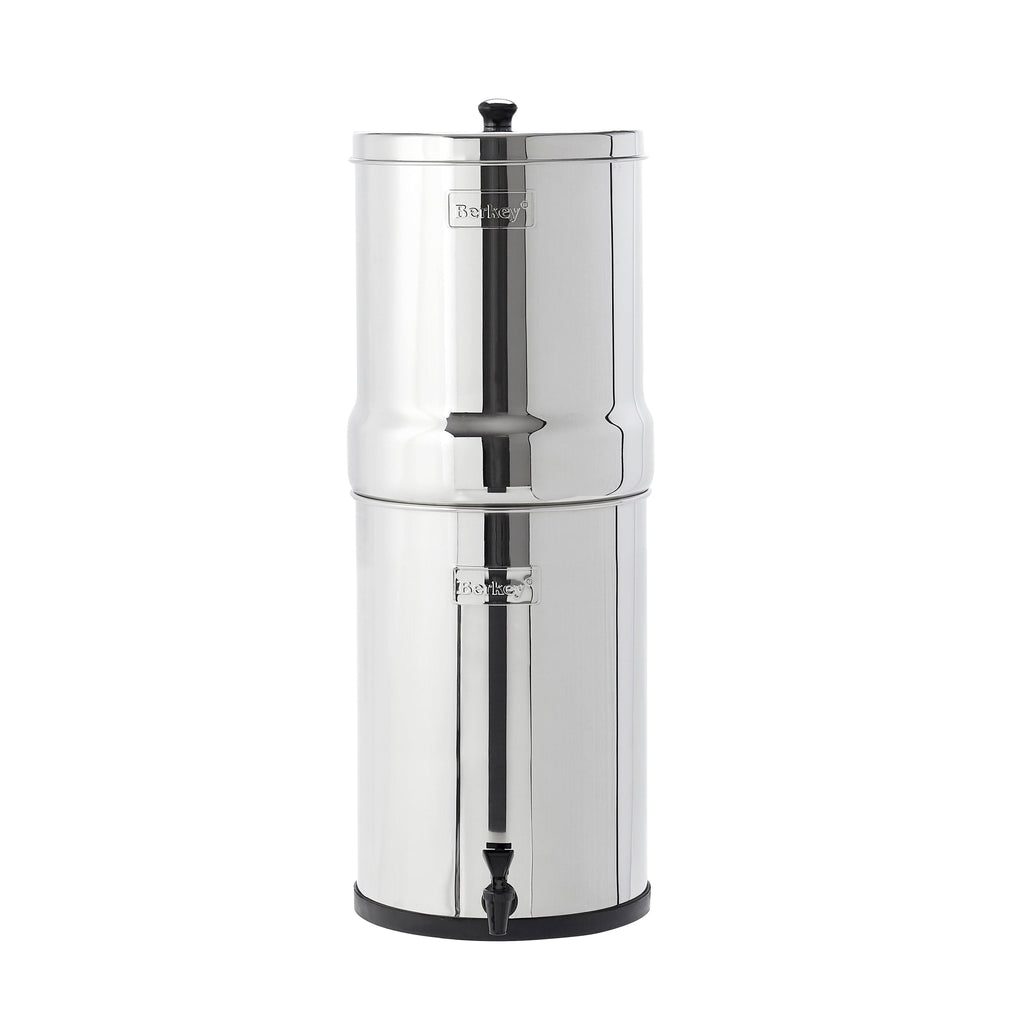

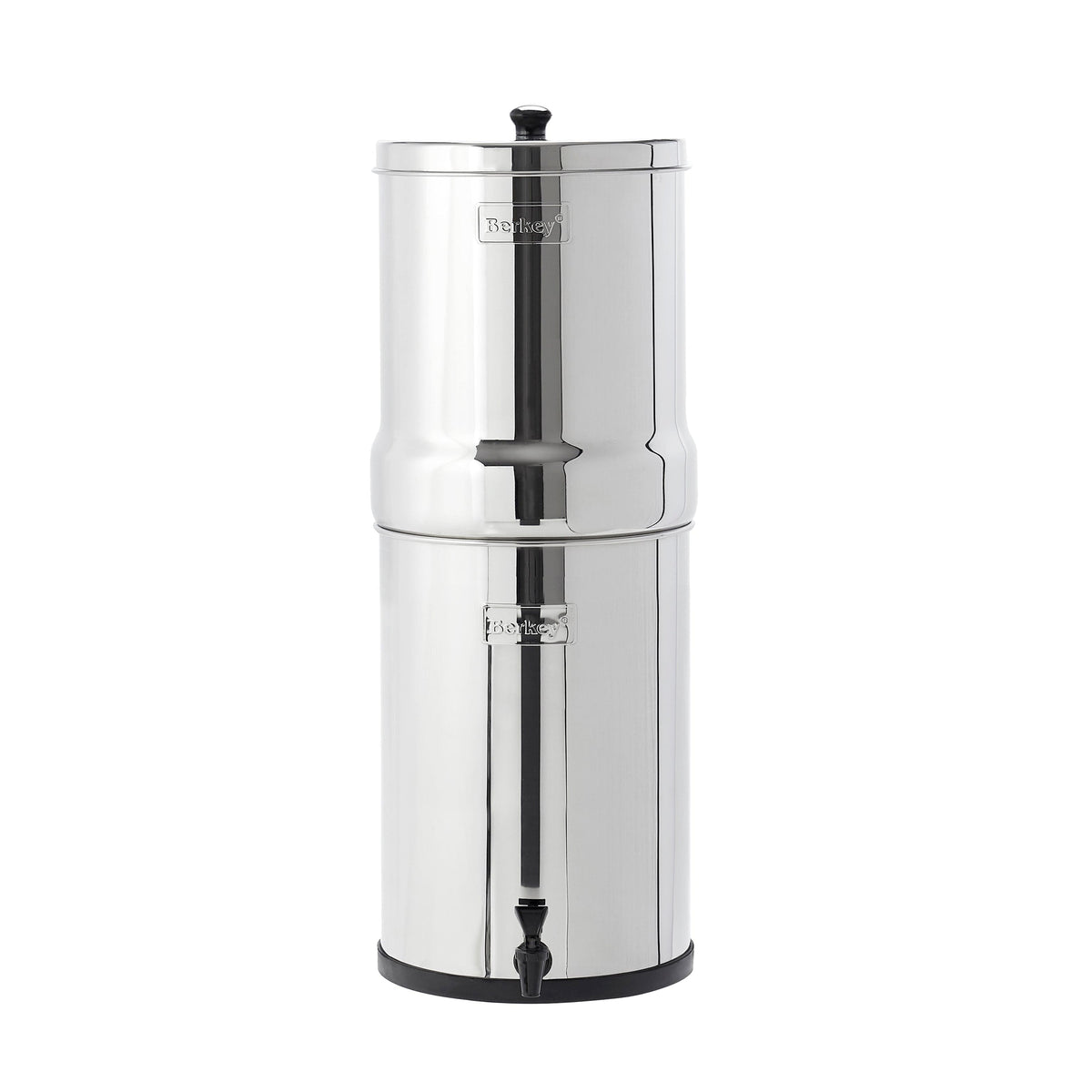

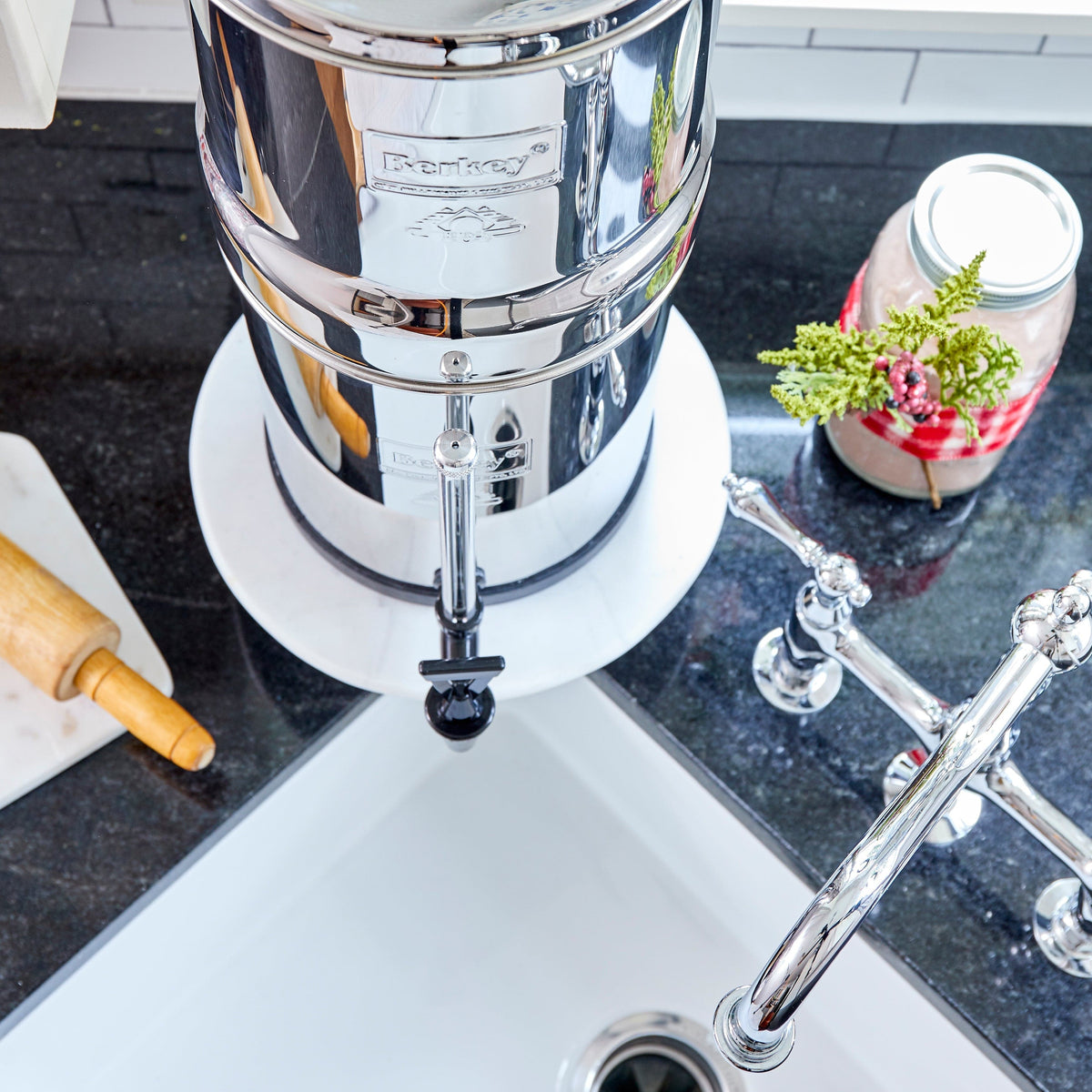

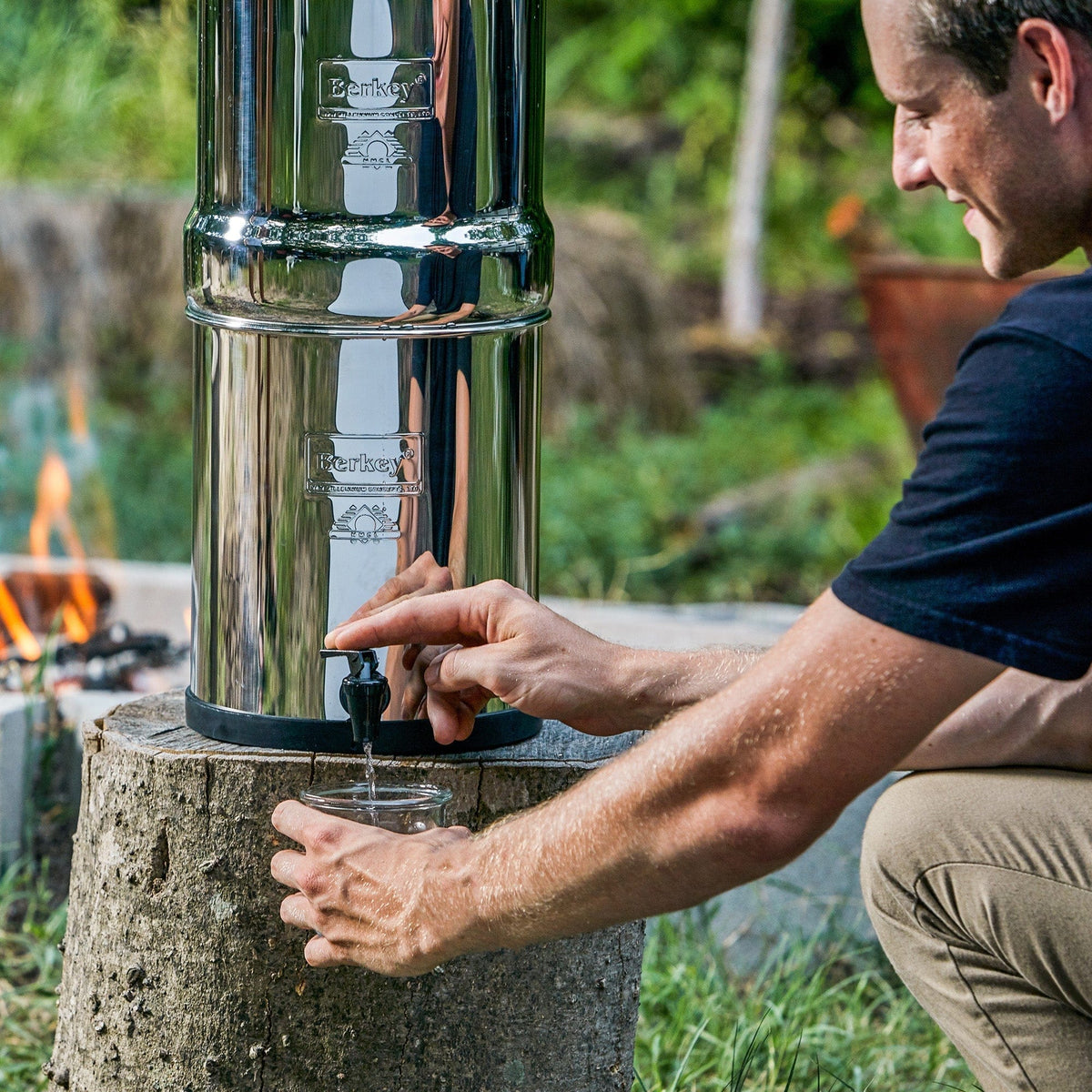

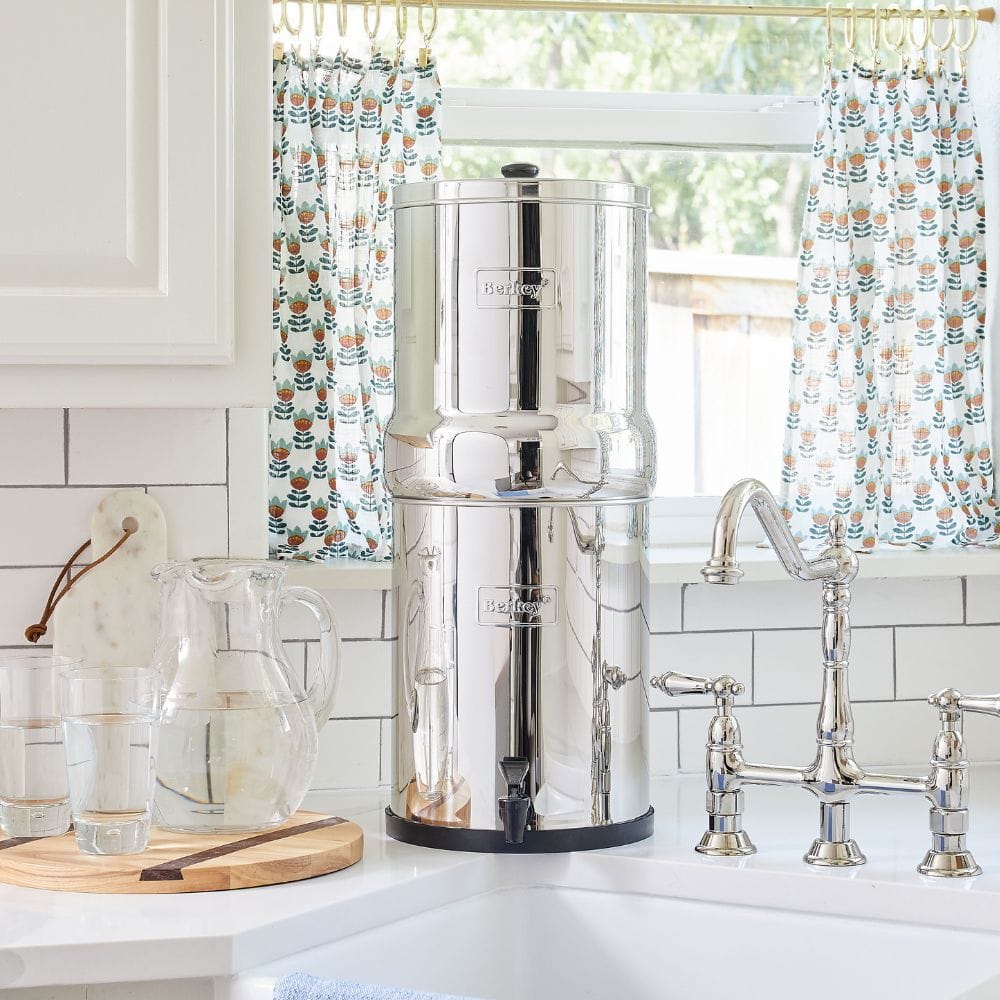

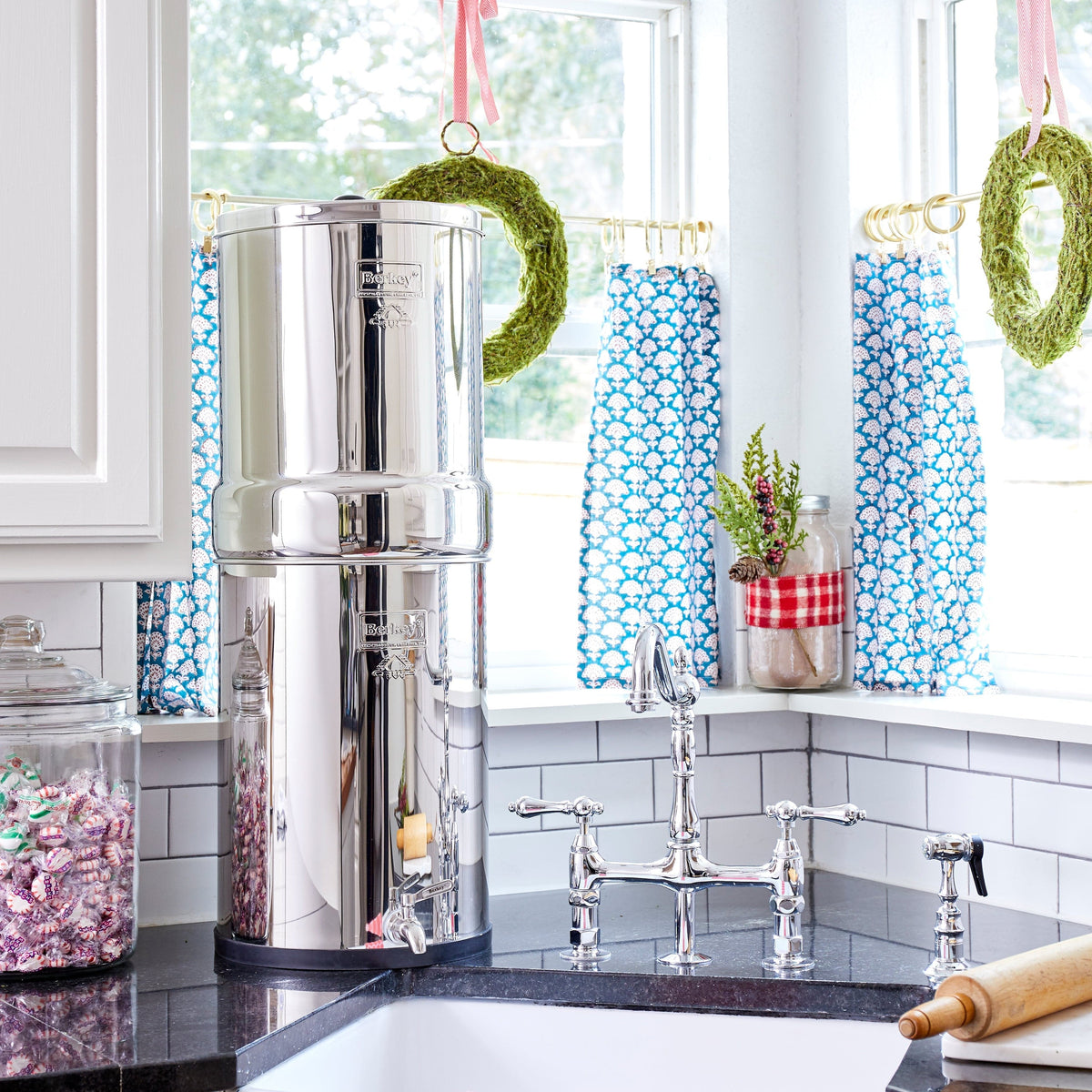

Imperial Berkey® 17 L
with 2 Black Berkey® filters
A generous reserve for large families and little ones groups. This fountain in AISI 304 stainless steel combines gravity operation with two Black Berkey® BB9-2elements. Pour the water into the upper tank and serve the filtered water to the tap in the lower tank.
💧 Gravity filtrationNo electricityNo permanent connection
✓ 2 Black Berkey® BB9-2 filters included. Phoenix filters not included.
4 to 8
Persons: manufacturer number
2 Black Berkey®
Main filters supplied
6 filters
Maximum configuration
Dimensions and characteristics of the Imperial Berkey®
| Features |
Detail |
| Model |
Imperial Berkey® 17 L — system with Black elements Berkey® |
| Height in use |
Approximately 66 cm
|
| Diameter |
Approximately 25.4 cm
|
| Height of nested tanks |
Approximately 43.2 cm for storage or transport |
| Curb weight |
Approx 4.5 kg
|
| Storage capacity |
Approximately 17 liters
|
| Number of people daily |
4 to 8 people depending on the indication of the manufacturer |
| Material |
AISI 304 stainless steel, polished finish |
| Main filters included |
2 Black Berkey® BB9-2 in upper bowl |
| Maximum configuration |
6 Black Berkey® ; additional filters sold separately |
| Operation |
By gravity, without electricity or permanent connection |
| Maximum flow rate with the 2 Black Berkey® supplied |
Up to 20.8 L/h, full upper tank, without PF-2™ |
| Optional PF-2™ post-filtration |
Up to 6 PF-2™ in lower tank, sold separately |
Dimensions and approximate weights converted from manufacturer's values. The number of people is a benchmark to adapt to your consumption. Remove the filters and the tap before fitting the tanks and follow the instructions for their storage.
Filtered water at your fingertips

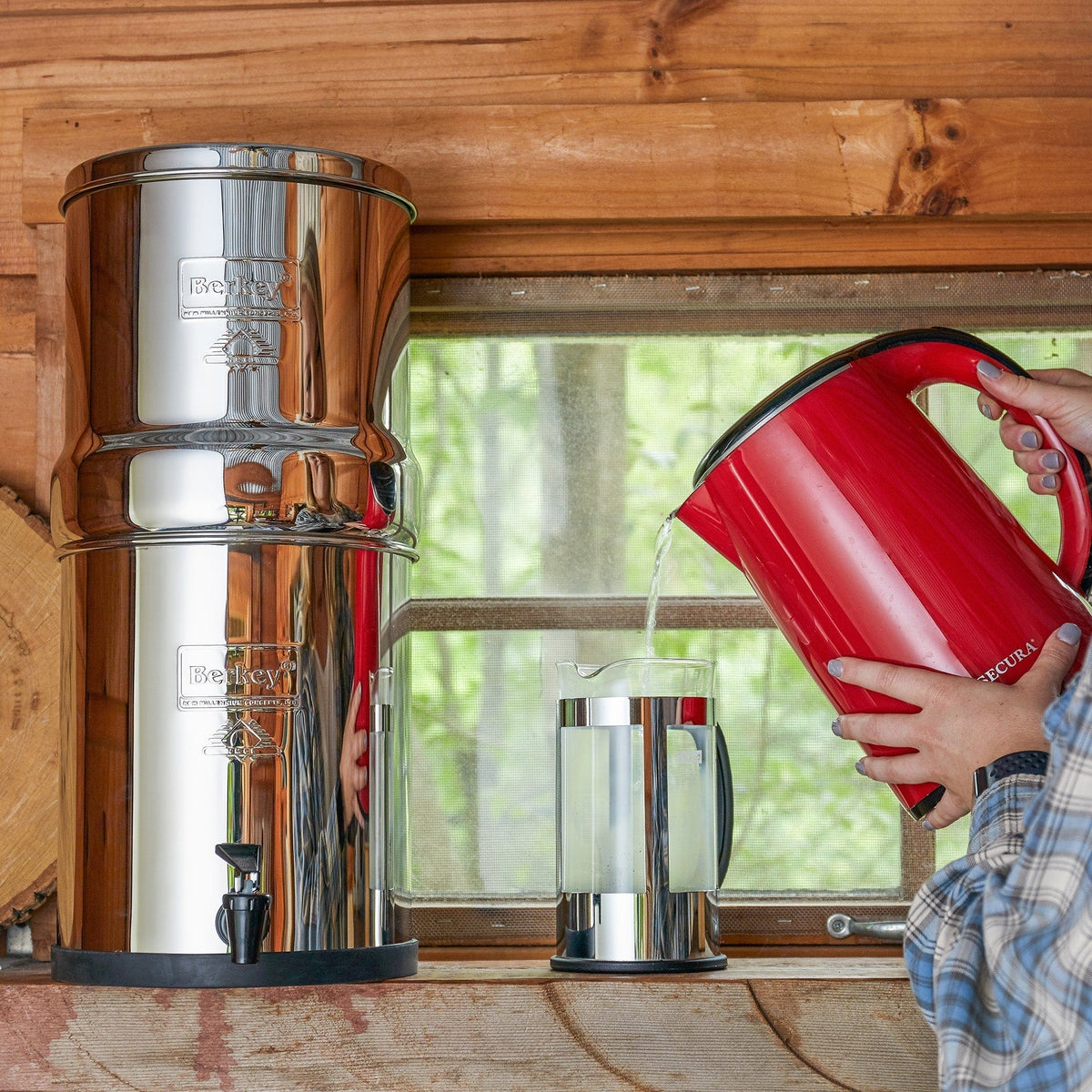

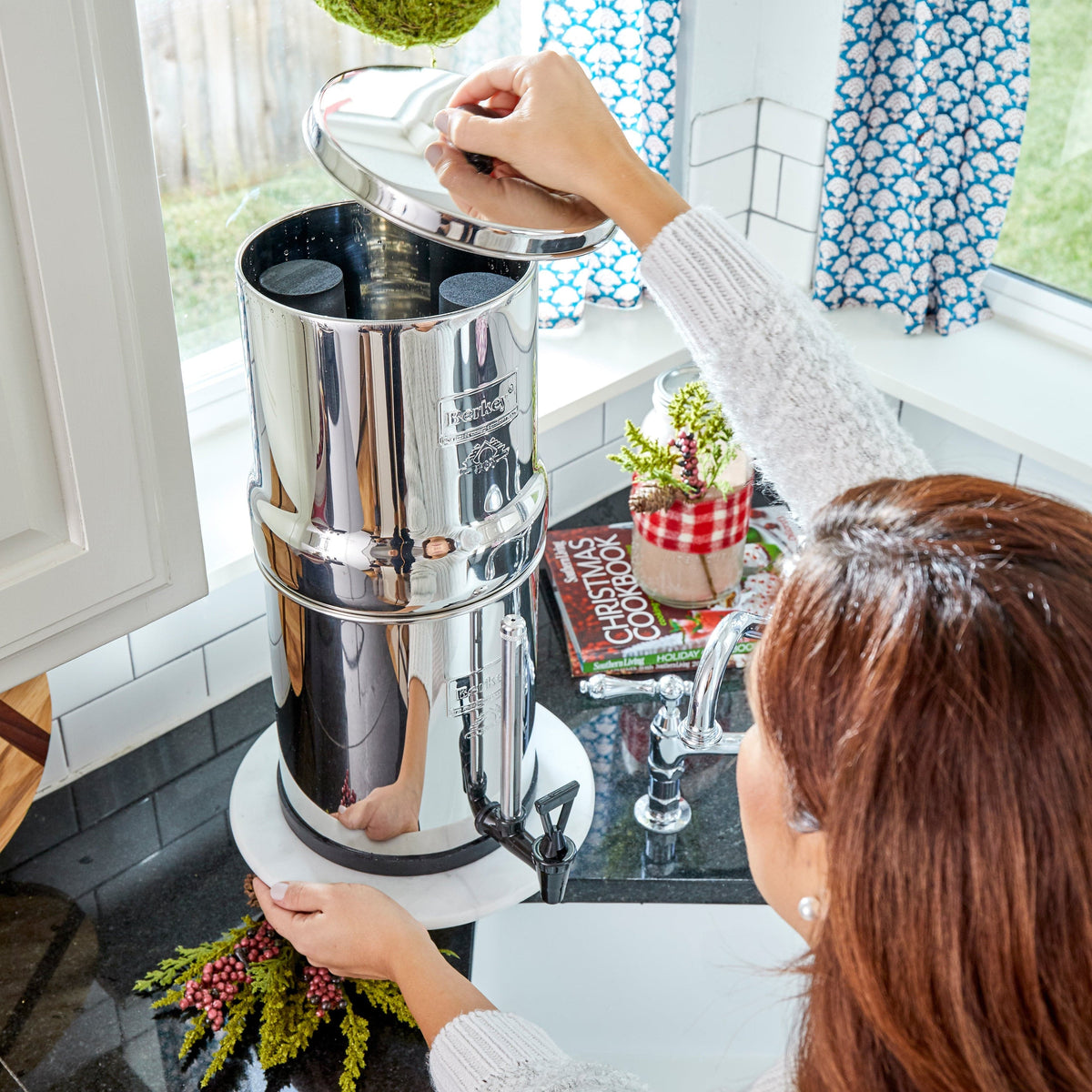

The system works with the weight of the water: the water poured into the upper tank passes through the Black Berkey® elements, then the lower tank retains the filtered water for service. You keep control of the filling, without an electrical connection.
With its reserve of 17 liters, the Imperial Berkey® is suitable for regular use at home. Install it on a stable surface, suitable for the weight of the full system, with convenient access to the lid and faucet.
UNDERSTANDING FILTRATION
Scalable flow rate according to your configuration
| Configuration without PF-2™ |
Maximum manufacturer flow rate |
| 2 Black Berkey® supplied |
Up to 20.8 L/h
|
| 6 Black Berkey® in total |
Up to 62.5 L/h
|
Maximum configuration requires 4 additional Black Berkey® filters, sold separately.
These maximums are measured with the full upper bowl. Flow rate decreases as the water level drops and is also dependent on priming and maintenance.
Rapid flow may be normal. However, check the tightness of the joints, the mounting of the filters and the caps if the flow rate seems unusual to you.
VOLUME AND MAINTENANCE
The correct benchmark for replacing your filters
The manufacturer recommends replacing the Black Berkey® pair after approximately 22,700 liters of filtered water, or 6,000 US gallons for both elements.
Filters may need replacement sooner depending on water quality. This volume does not correspond to a fixed duration in years. Note your consumption and maintain the elements during their period of use.
The reference is specific to Black Berkey® BB9-2. It should not be applied to Phoenix or PF-2™.
Understanding Black Berkey® performance
Black Berkey® elements use a proprietary blend of filter media. The manufacturer publishes third-party laboratory tests including chlorine, certain metals, pesticides, volatile organic compounds and perfluorinated compounds.
Results should be read substance by substance and under test conditions. Testing following an NSF/ANSI protocol does not, in itself, mean that the product has NSF certification.
Consult the test reports for the Black Berkey® elements
THE CONTENTS OF THIS OFFER

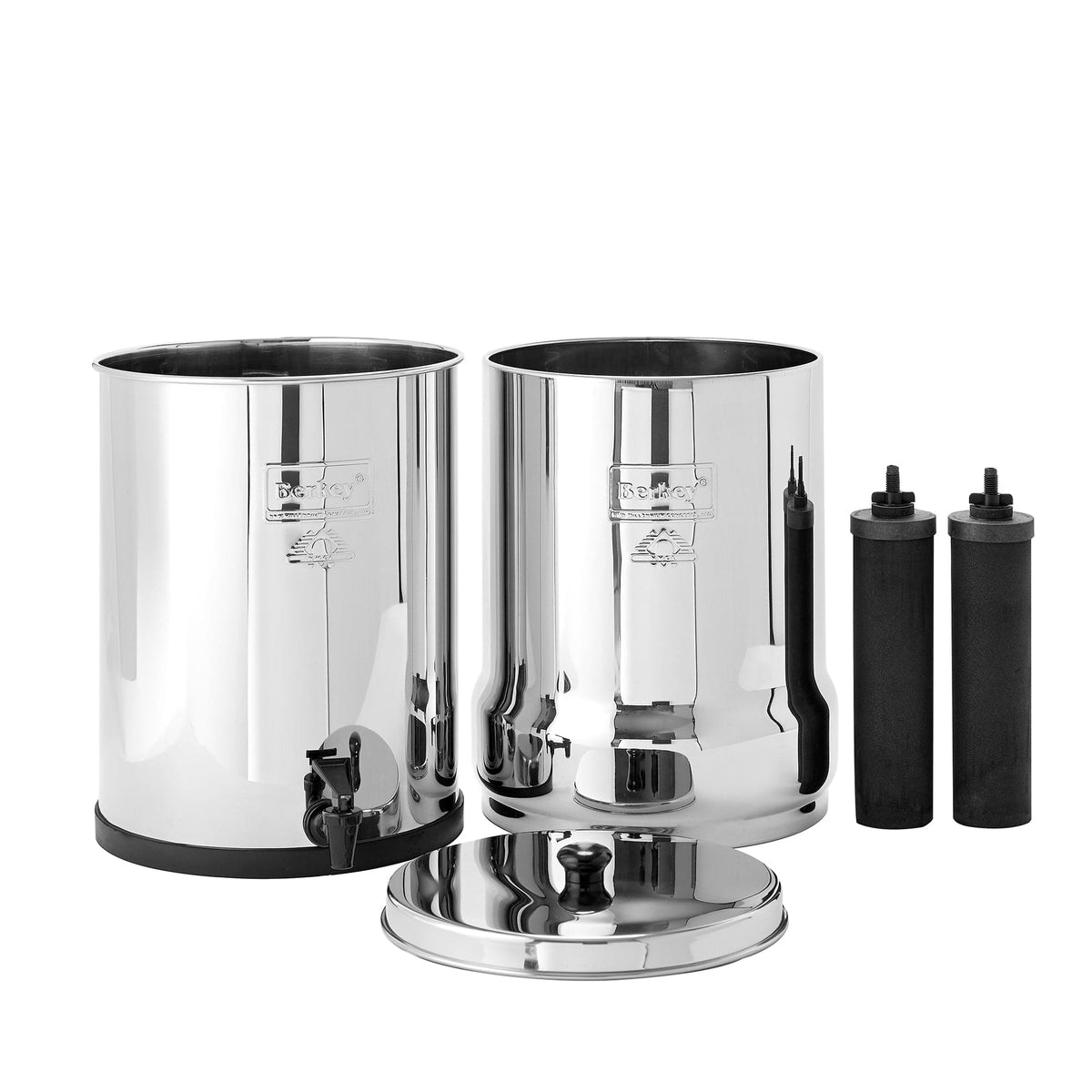

In your package

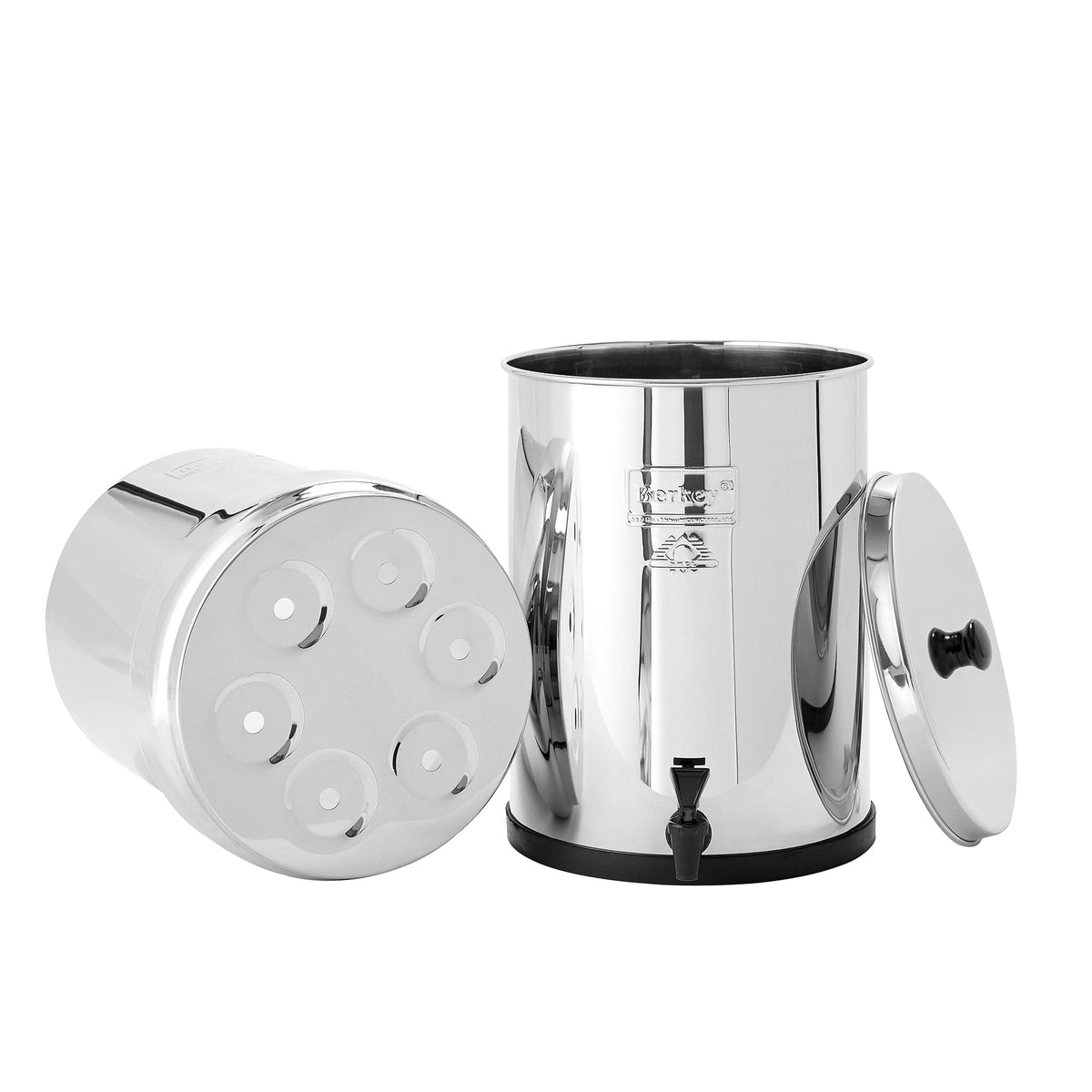

- One upper tank and one lower tank in stainless steel.
- Two Black elements Berkey® BB9-2.
- A stainless steel cover, with knob and screw.
- A faucet with mounting hardware.
- Two wing nuts and two sealing washers for the main filters.
- A washer or priming button.
-
4 caps to close unused filter locations.
- A rubber gasket to protect the base.
Optional additional filtration
The Imperial Berkey® can accommodate up to 6 Berkey PF-2™, with a post-filter by Black Berkey® in service. These optional accessories, sold separately, target fluorides and certain forms of arsenic. Their installation modifies the flow rate and requires their own maintenance.
FIRST USE
Prepare your fountain
-
Clean the tanks and the tap, then prime the Black Berkey® with cold water according to the instructions.
- Install the elements in the upper tank with their seals. Tighten the nuts by hand, without using force, and close all unused holes.
- Perform the assembly check, then discard the first filtered water according to the instructions. Repeat rinsing if particles persist.
- For subsequent fillings, take into account the water already present in the lower tank to avoid overflow.
DAILY
Simple steps for maintenance
The manufacturer recommends regular maintenance of the lower tank and the tap, approximately every 30 days as needed. Remove the elements before cleaning the tanks.

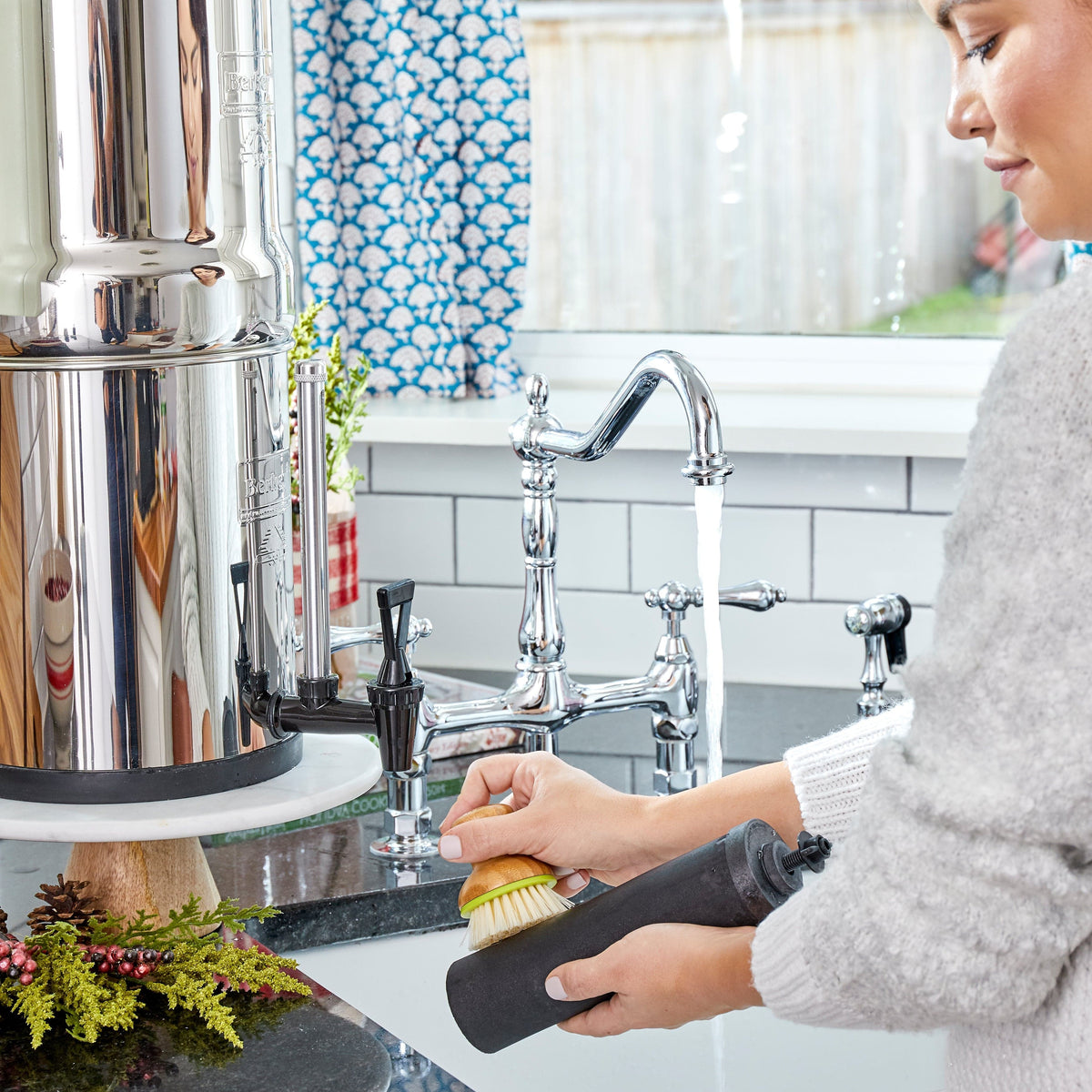

If the flow rate decreases, the Black Berkey® can be surface cleaned under water then primed again according to the instructions. Do not use soap or detergent on the filter elements. Protect wet filters from freezing.
CHECK MOUNTING POINTS
Dye checks assembly
Red food coloring test checks assembly and internal leaks, especially around gaskets, filters and caps. It does not alone measure the filtration efficiency on all contaminants.
Remove the PF-2™ before this test if they are installed. Use the coloring and dosage in the instructions. If a red or pink tint persists after checking the assembly, contact our customer service.
TIPS FOR USE
Choose the water to be filtered
For daily use, use cold or room temperature drinking water. The system is not for use with salt water, hot water or water from a salt softener.
Water of unknown origin may present particular risks. The advertised capacities do not guarantee the potability of any raw water or the removal of all pathogens.
Your purchase and your support
Official Berkey® approved reseller in France and the European Union. Authentic product; After-sales service provided by Monderma (Fountain water).
Black Berkey® elements have a prorated two-year manufacturer's limited commercial warranty, according to its conditions. This warranty is separate from the recommended replacement volume.
Origin of components: Berkey® stainless steel tanks assembled in the United States from American and imported parts; Black Berkey® filters manufactured and assembled in the United States.
